Rohde-Schwarz UPA UPA3 UPA4 Service manual Volume1 Volume2 ENG
Rohde-Schwarz UPA UPA3 UPA4 Service manual (English only)
part# 372.9265.24-03- for R&S UPA 372.6014.02/.03/.04

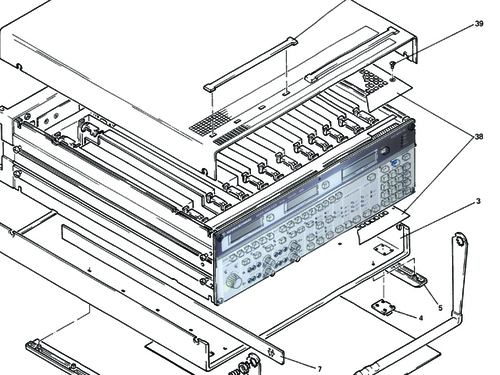

Complete service manual with schematics an layouts for Rohde-Schwarz UPA UPA3 UPA4
Volume 1 and Volume 2
583 Pages
220 MB .PDF file
300x300 DPI scan, lossless JPEG2000 compression
Tesxt pages in bitmap, graphics in grayscale
Includes colour 600x600 DPI English side of Users guide 372.7279.00 (plastic pull-out tab from under the instrument)
Includes colour folder picture scan and folder inserts

ENG contents
List of contents for the UPA description

VOLUME 1
- Service Manual for Complete Instrument
- Service Manuals for Individual Modules
- Generator UPA-B6 373.0010.02
- Input Circuit 372.6814.02
- Special Filter UPA-B2 373.1216.02
- Special Filter UPA-B3 373.1545.02
- Filter/Detector Board 372.7610.02

VOLUME 2
- Harmonic Distortion Meter UPA-B8 373.1616.02
- Wow & Flutter Meter UPA-B9 373.2612.02
- A/D Converter/Frequency Counter 372.7910.02
- Processor 372.8317.02
- Display/Keyboard 372.8917.02
- Connector Board 372.8669.02
- DC Output UPA-B1 373.2512.02
- Power Supply 372.8817.02

---

Keywords: upa;schwarz;rohde;upa3
