Hitachi Cassette Deck D-555 (W,FS,BS)
Service manual No.1002
Oct. 1977

48 pages, English, German, French language

300 dpi grayscale/colour, lossless ZIP PDF compression, 52MB

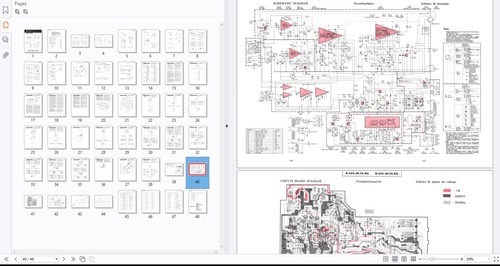

Full page schematics

Table of Contents:
Specifications
Explanation of new mechanisms and circuitry
-Auto-reverse
-Reed relay
-Aut-reverse Circuit Operation Principles
-Auto-reverse Mechanism Section
Disassembly
Adjustment
Inspection of mechanism
Lubrication
Level diagram
Block Diagram
Schematic diagram
Circuit board diagram
Wiring diagram
Exploded view
Replacement parts list

---
